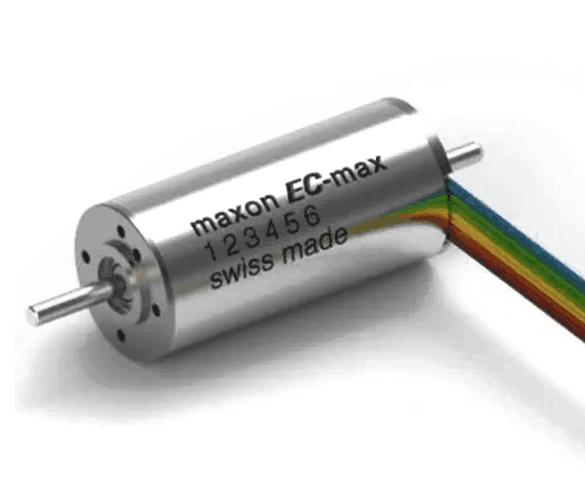

Maxon EC Motor is the full series of electronically commutated brushless DC motors independently developed and produced by maxon, which is the core high-performance product of maxon precision brushless drive technology. EC stands for Electronic Commutation, abandoning the traditional mechanical brush commutation mode, and realizing full electronic intelligent commutation and drive control. Maxon EC Motor covers multiple series such as maxon EC, ECX, EC-i, and EC flat, with power ranging from 0.5W to 800W and speed up to 80,000 rpm or even higher. Maxon EC Motor is famous for zero wear, low noise, low vibration, high efficiency, and ultra-long service life, and is widely used in long-term continuous operation industrial automation equipment, high-precision medical devices, semiconductor manufacturing equipment, and high-end robot systems.
The core structural principle of Maxon EC Motor is permanent magnet rotor electronic commutation drive. Maxon EC Motor takes high-performance rare earth permanent magnet as the rotor, and the stator is equipped with precision three-phase winding coils. Different from brushed motors that rely on brushes and commutators for mechanical commutation, Maxon EC Motor detects the real-time position of the rotor through built-in Hall sensors or sensorless algorithm technology, and the external professional driver accurately outputs three-phase alternating current to realize precise electronic commutation. This structural innovation completely eliminates brush friction loss and commutation spark interference, fundamentally solving the service life bottleneck and electromagnetic interference problems of traditional brushed motors.
Maxon EC Motor continues maxon's classic ironless core design concept, thoroughly eliminating the cogging torque and magnetic resistance ripple of traditional slotted motors. This makes Maxon EC Motor operate extremely smoothly at all speed stages, with ultra-low vibration and noise, and excellent speed and torque linearity. Some flat Maxon EC Motor products adopt unique axial magnetic field design, realizing ultra-thin structural size while maintaining high torque density, which is very suitable for flat and space-limited precision equipment. The multi-pole internal rotor structure of Maxon EC Motor optimizes the magnetic circuit layout, greatly improving torque density and dynamic response speed, with outstanding short-term overload capacity.
Maxon EC Motor has extremely high operational reliability and ultra-long service life. Due to the absence of wearable brush components, the main consumable parts of Maxon EC Motor are only high-precision bearings, and the continuous service life can reach tens of thousands of hours, which is far longer than that of traditional brushed motors. Maxon EC Motor adopts high-temperature resistant insulating materials and high-strength alloy shell structure, with good dust-proof, anti-corrosion, and temperature adaptability, and can operate stably in high-temperature, low-temperature, humid, and dusty industrial environments. Special customized Maxon EC Motor models support vacuum, radiation resistance, and high-pressure sterilization, adapting to extreme high-end manufacturing scenarios.
Maxon EC Motor needs to be matched with a dedicated three-phase full-bridge driver and support FOC field-oriented control technology to give full play to its low vibration and high-efficiency advantages. The dedicated drive system of Maxon EC Motor supports high-bandwidth current sampling and high-frequency PWM modulation, which can accurately match the winding inductance and resistance parameters of Maxon EC Motor, avoiding motor howling, jitter, and efficiency attenuation caused by parameter mismatch. Equipped with high-resolution incremental or absolute encoders, Maxon EC Motor can realize high-precision closed-loop positioning and speed regulation, meeting the ultra-precise control needs of high-end equipment.
In industrial scenario adaptation, Maxon EC Motor has obvious advantages in long-term continuous operation and high-precision control scenarios. High-speed Maxon EC Motor models are suitable for micro centrifuges, high-speed spindles, and precision polishing equipment; high-torque Maxon EC Motor models are widely used in robot joints, precision steering gears, and heavy-duty precision actuators; flat Maxon EC Motor models are the core drive components of wearable robots and ultra-thin precision equipment. With superior performance and reliable quality, Maxon EC Motor has become the mainstream high-end brushless precision motor in the global intelligent manufacturing industry.
